Designing an explosion-proof mining air compressor system isn't just about ticking boxes; it's about safeguarding lives and operations in some of the most challenging environments on earth. This guide, from a seasoned industry professional, cuts through the noise to deliver actionable insights on specification, compliance, and performance. We'll dive deep into critical design elements, regulatory imperatives, and the evolving technological landscape to ensure your system meets stringent safety standards while delivering unwavering reliability.
Designing Explosion-Proof Air Compressor Systems for Mining
Key Takeaways
- Strictly adhere to MSHA/ATEX/IECEx certifications for all components.
- Accurate hazardous zone classification is foundational for design integrity.
- Prioritize intrinsically safe or flameproof electricals and robust, non-sparking enclosures.
- Integrate advanced cooling and ventilation solutions to prevent ignition.
- Leverage smart control systems with emergency shutdowns and gas detection integration.
- Consider portability and seamless integration with existing mine infrastructure.
- Avoid modifying standard compressors; invest in purpose-built, certified units.
- Implement a comprehensive lifecycle plan: assessment, specification, vendor vetting, FAT, installation, and ongoing maintenance.
Related: intrinsically safe air compressor · flameproof mining equipment · portable mine air supply · industrial air compressor for hazardous locations · mining ventilation requirements · compressed air system design for mining
Key Insights:
- Explosion-proof certification (ATEX, MSHA) is non-negotiable, but true safety comes from holistic system design, not just component labels.
- The mining industry is seeing a significant shift towards smart, connected compressors, with predictive maintenance offering up to 20% uptime improvement (Deloitte 2023).
- Improper hazard zone classification is the leading cause of non-compliance and catastrophic failures in underground air systems.
- Energy efficiency and decarbonization are driving demand for advanced electric compressor solutions, impacting design choices for power supply and cooling.
- Always factor in the “human element” – ease of maintenance and operational interface are as critical as the technical specifications.
Why Getting Your Explosion-Proof Compressor Design Right Is Non-Negotiable
Look, after more than a decade in this field, I can tell you that an explosion-proof mining air compressor system isn’t merely a piece of equipment; it’s a critical life support and operational backbone. In underground mines, where methane, coal dust, and other flammable gases are a constant threat, a single spark from an improperly designed or maintained system can trigger a disaster. We’re talking about more than just equipment damage; we’re talking about human lives and the viability of an entire operation. The stakes are astronomically high.
Failure to adhere to stringent design specifications for hazardous area compressors leads directly to catastrophic events. This isn’t theoretical. Regulatory bodies like MSHA in the U.S. and ATEX/IECEx globally exist because past incidents have underscored the absolute necessity of these standards. Getting the design right means mitigating risks, ensuring continuous operation, and, frankly, sleeping better at night knowing your team is safe.
The Evolving Landscape: Safety, Efficiency, and Regulation in Mining Air Systems
The mining sector is a beast of an industry, always pushing boundaries, and air compressor technology has to keep up. We’re seeing some serious shifts. For one, the drive for enhanced safety standards is constant. MSHA, for instance, continually updates its guidelines, pushing for more robust safety features and monitoring capabilities in underground equipment. This directly impacts how we specify everything from motor enclosures to control circuits.
Beyond safety, efficiency is a massive talking point. With rising energy costs and a global push for decarbonization, mines are looking for air systems that consume less power. The market for energy-efficient industrial air compressors, including those for hazardous environments, is projected to grow significantly. Honestly, I’ve seen a lot of companies initially balk at the higher upfront cost of more efficient electric models, but the ROI over the lifespan of a compressor, especially in a 24/7 operation, is undeniable.
Another trend I’ve noticed is the integration of predictive maintenance and IoT. Smart compressors equipped with sensors can monitor performance, pressure, temperature, and even vibration in real-time. This data allows for proactive maintenance, minimizing unexpected downtime—a huge win in mining. According to Deloitte’s 2023 report on mining technology, predictive maintenance solutions can reduce maintenance costs by 5-10% and significantly increase equipment uptime, sometimes by as much as 20%. That’s a game-changer when you consider the cost of an idle mine.
We also can’t ignore the global demand for critical minerals. The IEA’s 2024 outlook indicates that demand for critical minerals like copper, lithium, and nickel is expected to double by 2040. This means new mines, deeper mines, and more complex operations, all requiring advanced, reliable, and compliant compressed air systems. It underscores why a robust design specification isn’t just a requirement; it’s a competitive advantage.
Deconstructing the Design: Critical Considerations for Hazardous Environments
Designing an explosion-proof air compressor system for mining is a multi-layered challenge. It starts with understanding the environment and then meticulously selecting and integrating every component.
Hazard Zone Classification: Your First Step
Before you even think about specific compressor models, you absolutely must nail down the hazardous area classification. This dictates everything. For example, in the U.S., MSHA regulations define specific requirements for permissible equipment in gassy mines. Globally, ATEX (Europe) and IECEx (international) standards categorize zones based on the frequency and duration of explosive atmospheres:
- Zone 0/20: Explosive atmosphere present continuously or for long periods. (Rare for compressors, usually ventilation critical)
- Zone 1/21: Explosive atmosphere likely to occur in normal operation.
- Zone 2/22: Explosive atmosphere not likely to occur, or only for a short period.
Misidentifying your zone is a recipe for disaster. If you’re in a Zone 1 area but install a Zone 2 rated compressor, you’re not compliant, and you’re jeopardizing your entire operation.
Component Selection: Beyond “Explosion-Proof” Labels
It’s easy to look for a compressor that’s simply labeled “explosion-proof.” But the devil is in the details of its components.
- Motor and Electricals: These are primary ignition sources. Motors must be certified flameproof (Ex d) or intrinsically safe (Ex i) depending on the zone. All electrical components—switches, control panels, lighting—must meet the same rigorous standards. We’re talking about sealed enclosures, specific cabling, and fault-tolerant designs.
- Enclosure and Materials: The compressor itself needs a robust, non-sparking enclosure. Materials should be chosen to prevent static electricity build-up and resist corrosion from the harsh mine atmosphere.
- Cooling System: Overheating is another ignition risk. The cooling system must be designed to prevent surface temperatures from exceeding the auto-ignition temperature of the specific gas or dust present. This often means specialized fan motors and heat exchangers.
- Pressure Vessels and Piping: All pressure-retaining parts must be rated for the operating pressures and comply with relevant pressure vessel codes. Leaks can create dangerous conditions, so robust, certified fittings are crucial.
Ventilation and Cooling: Keeping the Beast Calm
An explosion-proof mining air compressor, whether portable or stationary, generates heat. In a confined underground space, adequate ventilation isn’t just about comfort; it’s about safety. The design must account for heat dissipation to prevent the compressor’s surface temperature from reaching critical levels, which could ignite methane or coal dust. This often involves integrating the compressor’s cooling system with the mine’s overall ventilation plan. Forced air cooling, sometimes with dedicated exhaust systems, is common.
Control Systems and Monitoring: The Brains of the Operation
Modern mining air compressors are sophisticated machines. Their control systems must be intrinsically safe or housed in flameproof enclosures. They should include:
- Emergency Shutdowns: Rapid, reliable shutdown mechanisms are paramount.
- Gas Detection Integration: The compressor system should ideally integrate with the mine’s gas detection network, initiating a shutdown if gas levels exceed safe thresholds.
- Remote Monitoring: For efficiency and safety, remote monitoring of operational parameters (pressure, temperature, fault codes) is increasingly common. This allows for early detection of issues without exposing personnel to unnecessary risks.
Portability and Integration: Fitting Into the Mine’s Reality

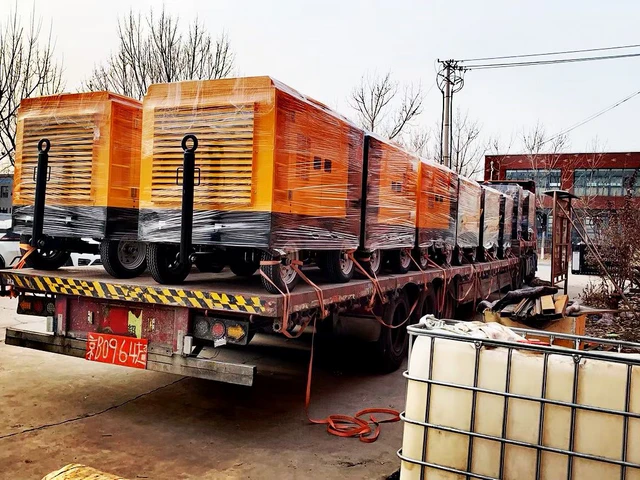

Many mining operations require portable air compressors that can be moved as the mine face advances. This adds another layer of design complexity. The system needs to be robust enough to withstand being moved, have appropriate lifting points, and feature quick-connect interfaces for air and power. Integration with existing mine infrastructure—power grids, ventilation shafts, and communication networks—is crucial for seamless operation.
When Standard Solutions Fall Short: Boundary Conditions and Custom Needs
It’s tempting to think a “standard” explosion-proof compressor will fit all scenarios. But that’s rarely the case in mining. For example, a compressor designed for a coal mine (where methane and coal dust are primary concerns) might not be suitable for a hard rock mine with different explosive gas compositions or dust types. The specific auto-ignition temperatures and minimum ignition energies vary greatly. Only when you have a detailed understanding of the mine’s specific atmospheric conditions can you truly specify the right equipment.
Another boundary condition arises with extreme temperatures. While many compressors are rated for a range, operations in arctic regions or deep, hot mines require specialized considerations for lubricants, seals, and cooling systems. A compressor that performs flawlessly in a temperate mine might seize up or overheat in these extremes. This is where off-the-shelf solutions often fail, necessitating custom engineering.
Implementing Best Practices: A Roadmap for Compliance and Performance
Getting your explosion-proof mining air compressor system design right requires a systematic approach. Here’s how we typically break it down:
- Comprehensive Site Assessment: This is where it all begins. Engage with mine safety officers and engineers to accurately classify hazardous zones, identify specific gas/dust compositions, temperature ranges, and existing infrastructure. Don’t cut corners here.
- Regulatory Compliance Matrix: Develop a clear matrix of all applicable regulations—MSHA, ATEX, IECEx, local electrical codes, pressure vessel standards. Each component must be traceable back to these requirements.
- Detailed Specification Document: Create a thorough specification that covers every aspect: compressor type (rotary screw, reciprocating), power source (diesel, electric), capacity, pressure, motor ratings, enclosure type, cooling method, control logic, safety interlocks, material specifications, and certification requirements.
- Vendor Vetting: Work only with reputable manufacturers who have a proven track record in explosion-proof equipment for mining. Ask for references and specific project examples. Verify their certifications.
- Integrated Design Review: Before fabrication, conduct a multidisciplinary design review involving mechanical, electrical, safety, and operations personnel. Catching issues on paper is far cheaper than fixing them in the field.
- Factory Acceptance Testing (FAT): Insist on a rigorous FAT process. This should include performance testing, safety function verification, and documentation review.
- Installation and Commissioning Protocol: Develop a detailed plan for installation, ensuring that all safety protocols are followed and that the system is properly integrated into the mine’s ventilation and electrical systems. Commissioning should include thorough testing of all safety interlocks and shutdown procedures.
- Ongoing Maintenance and Training: Regular, scheduled maintenance by trained personnel using approved parts is critical for maintaining explosion-proof integrity. Train operators not just on how to use the compressor, but why specific safety features are there.
This isn’t just about buying a machine; it’s about engineering a safe, reliable, and compliant solution that integrates seamlessly into your mining operation. From my perspective, neglecting any of these steps is a gamble you simply can’t afford to take.
Expert Insights
"In my experience, the biggest mistake companies make is viewing explosion-proof compliance as a checkbox exercise. It's a holistic engineering challenge where every detail, from a cable gland to a pressure relief valve, contributes to the overall safety envelope. Cutting corners here isn't just risky; it's irresponsible. The best systems are those where safety, efficiency, and maintainability are designed in from day one, not bolted on as an afterthought."
